SV-6834.CHR

SKU: SV-6834.CHR
Manufacturer part number: SV-6834.CHR

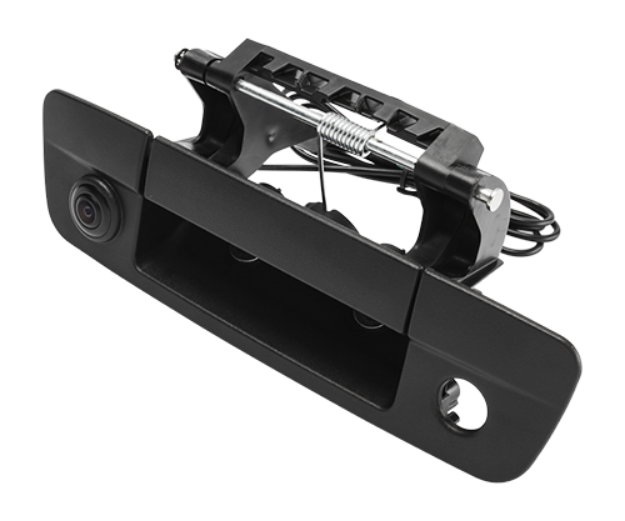

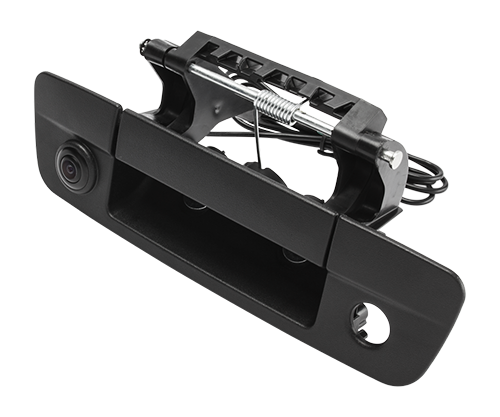

Tailgate Handle Camera for 2010-2014 Ram Trucks
Availability: In stock

The CrimeStopper SV-6834.CHR is a replacement tailgate handle with a built-in camera for the 2010-2014 Ram trucks. This is designed to replace the OEM handle while keeping the OEM functions and adding a much needed camera.

  • 2010-2014 Ram 1500 truck tailgate handle camera
  • 170⁰ viewing angle
  • Handle, linkage and camera all in one for direct swap
  • Selectable parking assist lines
  • Constructed from high-grade plastic
  • Replaces OEM tailgate handle
  • Waterproof design

OVERVIEW

The CrimeStopper SV-6832.CHR is a replacement tailgate handle with a built-in 170° viewing angle camera for the 2010-2014 Ram trucks. This is a direct replacement for the tailgate handle that comes on the vehicle. This will add a reverse camera option with no drilling of holes. All of the linkage mounting points are all the same as the factory so that you will have a direct swap of parts with no need to modify any parts.

The only thing you will need to do is route the harness out of the tailgate and underneath the truck to the monitor in the vehicle. The wiring is pre-loomed so you can run the wiring without having to worry about the elements. This system offers selectable parking assist lines, meaning you can have them on or off.

Manufacturer P/N: SV6834CHR

Products specifications
Image SensorCMOS
Dimensions3⅞"(L) × 7⅞"(W) × 1½"(D)
Resolution420 TV Lines / 648px(H) × 488px(V)
Minimum Illumination0.5 LUX / F1.2
Horizontal Angle170°
Vertical Angle90°
Video SystemNTSC / PAL
Video OutputRCA 1.0Vp-p Composite (75 Ohm load)
Power SourceDC 12V
Power Consumption150mA Max
Electronic Shutter1/50s - 1/100000s
Gamma Correction0.45
Operating Temperature-22°F - 158°F (-30°C - 70°C)
WaterproofIP67 - IP68
Night VisionNo
Normal/Reverse ImageReverse Image
Parking LinesYes (Selectable)
Audio OutNo
Camera Cable Length5¾ Ft
Power Cable Length23¼ Ft
Video Cable Length23¼ Ft
